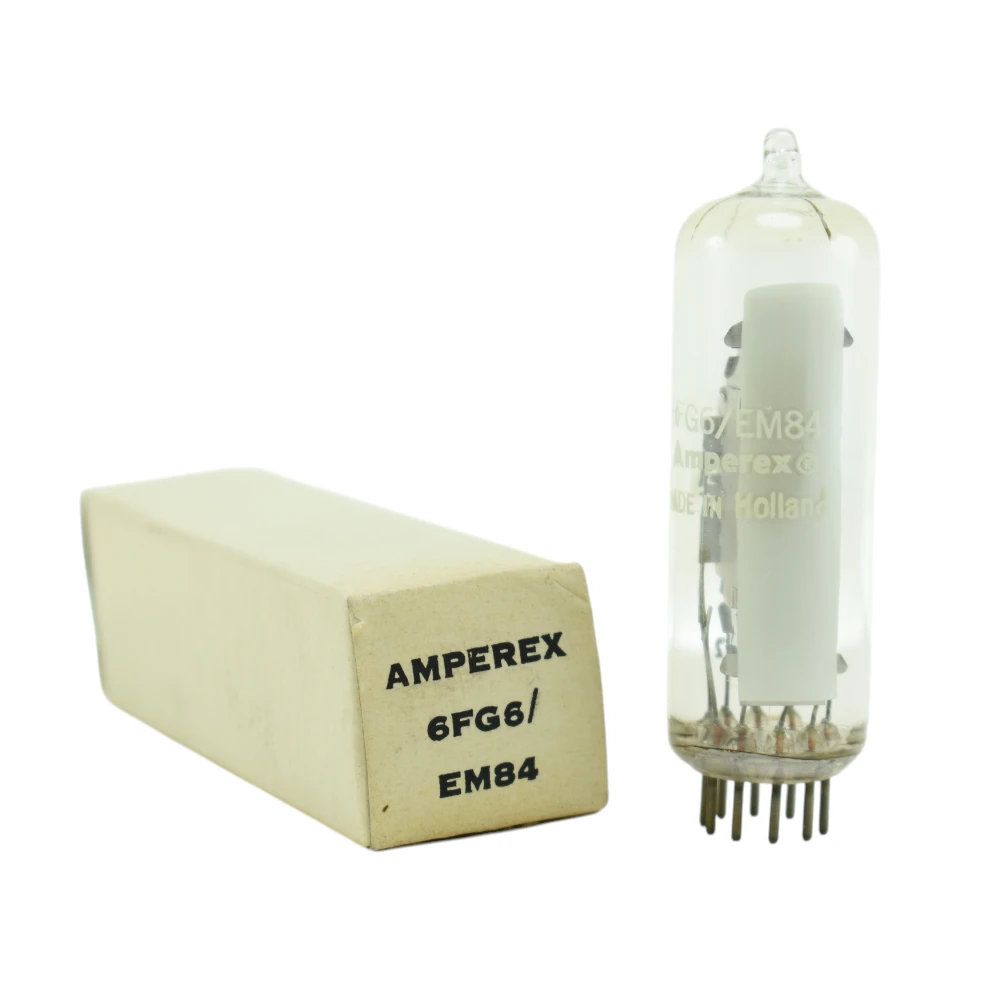

Amperex EM84 6FG6 NOS Magic Eye Tube (Made in Holland) Tested

For vintage electronics restoration enthusiasts, the visual appeal of a piece of equipment is just as important as its performance. This Amperex EM84 / 6FG6 NOS Magic Eye Tube is the ideal solution for restoring the tuning indicator or recording-level display of classic audio and radio equipment to its original appearance and functionality.

Commonly referred to as a “Magic Eye” tube, the EM84 is a miniature cathode-ray indicator designed to provide a visual representation of electronic signal levels. Its distinctive green phosphor display forms two luminous bands that dynamically converge and diverge in response to variations in control voltage. This elegant visual effect made the EM84 a popular feature in vintage radios, hi-fi receivers, tape recorders, and laboratory equipment throughout the golden age of vacuum tube electronics.

The “Made in Holland” Advantage
While Amperex began as a prominent American brand, many of its premium vacuum tubes were later manufactured by Philips in Europe. The “Made in Holland” marking on this tube indicates production at the renowned Philips facility in Heerlen, Netherlands, a plant highly regarded among collectors and restoration specialists for its exceptional manufacturing standards.
Heerlen-produced tubes are prized for their high-quality vacuum integrity, tight production tolerances, long service life, and consistently bright, durable phosphor displays. As a result, Dutch-made Amperex tubes remain among the most sought-after replacements for vintage audio, radio, and recording equipment.

Who Is It For and Where Is It Used?
This component is intended for audiophiles, service technicians, restoration specialists, and vintage electronics collectors. Its most notable applications include:

• European Tube Radios (1950s–1960s): Commonly used in classic receivers from manufacturers such as Grundig, Telefunken, Blaupunkt, and Saba, where the EM84 served as a visual AM/FM tuning indicator, allowing precise station tuning through its distinctive green display.

• Reel-to-Reel Tape Recorders: Widely used in classic machines from manufacturers such as Revox (e.g., the G36 series), Tandberg, and Studer, where the EM84 functioned as a recording-level indicator or visual VU meter for monitoring audio signal levels during recording and playback.

• Modern Audio Projects: Popular in custom-built (DIY) hi-fi preamplifiers, integrated amplifiers, and audio displays where builders seek to incorporate a distinctive retro analog aesthetic. The EM84’s dynamic green phosphor display adds both functional signal indication and the classic visual appeal associated with vintage vacuum-tube equipment.

Precision Technical Specifications (Datasheet Reference)

• Tube Type: Band-Type Tuning Indicator Tube (Magic Eye Indicator).

• Direct Equivalents: EM84 (European designation), 6FG6 (U.S. designation), 6E3P (approximate Russian equivalent), and CV8228 (British military designation).

• Base Type: Noval B9A (9-Pin Miniature Base).

• Heater Voltage / Current: 6.3 Volts / 0.21 Amperes (AC or DC).

• Typical Anode Voltage: 250 VDC.

• Indicator Control Voltage: 0 V (fully open display) to approximately -22 V (fully closed display).

Frequently Asked Questions (FAQ)

Q1: What is the difference between the EM84 and the 6FG6?
There is no electrical or physical difference between the two types. EM84 is the European designation used under the Mullard/Philips naming system, while 6FG6 is the American RETMA designation for the exact same tube. This tube will operate correctly in equipment specifying either designation, making it a direct replacement for both EM84 and 6FG6 applications.

Q2: Since this is an old tube, how can you guarantee that the “Magic Eye” still works?
As a New Old Stock (NOS) item, this tube has never been installed in equipment for continuous operation, meaning the internal phosphor coating has not been subjected to the wear and burn-in commonly found in used Magic Eye tubes. In addition, the tube has been tested on a professional tube tester to verify proper filament continuity, absence of internal shorts, and correct electron emission. These tests confirm that the tube remains operational and suitable for installation in compatible vintage equipment.

Q3: The box appears generic. Is this really an original Amperex tube?
Yes. During the mid-century electronics era, manufacturers often supplied vacuum tubes in bulk quantities or in generic branded cartons intended for industrial distribution, military service, equipment manufacturers, and repair shops rather than colorful retail packaging designed for store displays. As a result, it is not unusual to find genuine NOS tubes packaged in plain or utility-style boxes.
The definitive proof of authenticity is the tube itself. This tube features the original etched factory markings on the glass, including the Amperex brand identification and “Made in Holland” origin marking. These permanent factory-applied codes are considered the most reliable method of verifying the tube’s origin and authenticity.
