Raytheon 6146B NOS Vacuum Tube (New RF Transmitting Tube in Original Box)

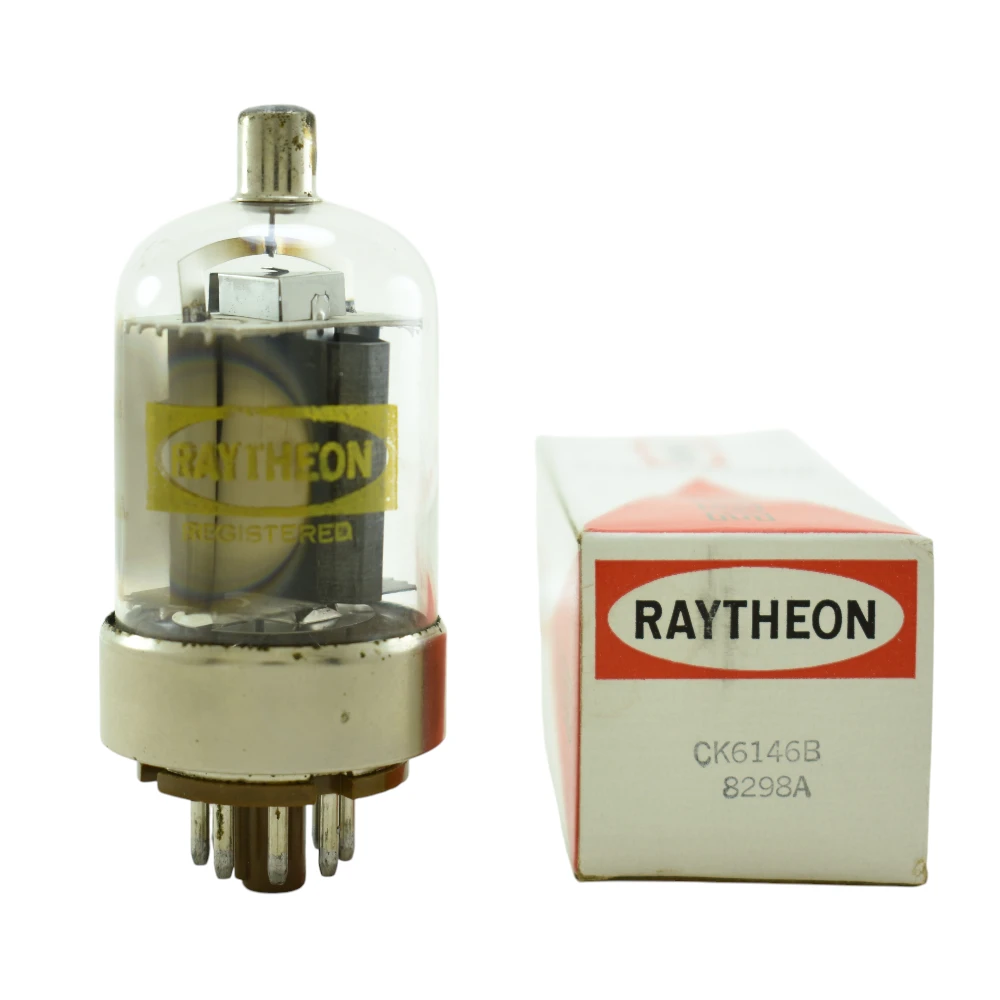

For RF enthusiasts and electronic restoration purists, this Raytheon 6146B NOS vacuum tube represents the pinnacle of mid-20th-century American thermionic tube manufacturing. Unlike many modern production tubes, the 6146B offers the mechanical ruggedness, thermal stability, and proven reliability demanded by classic transmitting equipment, linear amplifiers, and vintage communications gear.

This specific unit is New Old Stock (NOS), meaning it comes from unused inventory and has never been placed into service, preserving its full operational life expectancy. The tube features the distinctive Raytheon “CK” marking and carries the “8298A” designation, identifying it as an equivalent type suitable for demanding industrial, commercial, and military-grade applications. Its unused condition and original manufacturing pedigree make it particularly desirable for restorations, transmitter maintenance, and collectors seeking authentic period-correct components.

Manufacturer Background: Raytheon Company
Raytheon is a legendary American technology company founded in 1922. During the 1950s through the 1970s, it became one of the leading suppliers to the U.S. Department of Defense, manufacturing vacuum tubes and electronic components to exceptionally rigorous quality standards, including military specifications (Mil-Spec) for demanding applications. Raytheon tubes earned a reputation for outstanding reliability, rugged construction, and consistent performance, making them highly valued in military communications systems, industrial equipment, broadcasting, and amateur radio applications. To this day, vintage Raytheon components remain sought after by collectors, restorers, and radio enthusiasts for their durability and engineering quality.

Who Is It For and What Are Its Applications?
This tube is intended for electronics technicians, vintage equipment restorers, and, most notably, amateur radio operators (ham radio enthusiasts). Its robust construction and proven reliability make it well suited for maintaining, restoring, and operating classic vacuum tube equipment.
Primary applications include:

• RF Power Output Stages: Ideal for use in the final RF amplifier stages of classic HF (High Frequency) transmitters and transceivers.

• Iconic Equipment Compatibility: A direct and highly sought-after replacement for the RF power amplifier (PA) output stages used in legendary transceivers such as the Kenwood TS-520, TS-820, and TS-830 series; Yaesu FT-101ZD and FT-901/902 series; as well as numerous Collins and Drake communications systems.

• Industrial Modulation and Audio Amplifiers: Suitable for use in industrial modulation systems and high-power vacuum tube audio amplifier applications.

Technical Specifications (Based on Datasheet Information)

• Tube Type: Beam Power Tetrode.

• Base: Small Octal (8-pin) base with mica/ceramic construction. Plate (anode) connection via top cap.

• Filament Voltage: 6.3 V (AC or DC).

• Filament Current: 1.125 A.

• Maximum Plate (Anode) Dissipation: 35 Watts. The “B” version provides higher power dissipation capability and improved thermal performance compared to the earlier 6146 and 6146A variants.

• Maximum Operating Frequency (Full Power): Up to 60 MHz. Operation is possible up to approximately 175 MHz with reduced power output.

• Cooling: Natural convection or forced-air cooling when installed in enclosed chassis applications.

Frequently Asked Questions (FAQ – Optimized for Schema Markup)

Q1: Can this 6146B tube directly replace an older 6146 or 6146A tube?
Yes. The 6146B was developed as an improved and more rugged version of the original 6146 family. In most RF transmitters, transceivers, and linear amplifier applications, it can be used as a direct replacement for 6146, 6146A, and 6146W tubes. The 6146B offers a higher maximum plate dissipation rating of 35 watts compared to the 25-watt rating of the original 6146 and 6146A versions, providing increased thermal capacity and improved durability under demanding operating conditions.
As with any tube replacement, users should consult the equipment manufacturer’s documentation and verify operating conditions before installation.

Q2: How can the tube’s functionality be verified if it comes from old inventory?
Although this tube is classified as New Old Stock (NOS) and has never been used in regular service, it has been tested on a professional tube tester prior to listing. Testing confirmed the absence of internal shorts, verified filament continuity, and showed mutual conductance (Gm) readings within factory specifications. This verification helps ensure that the tube remains fully functional and ready for installation in compatible equipment.

Q3: Do I need to neutralize my radio equipment when installing this tube?
Yes. As a general rule, any time a final RF amplifier tube is replaced, the transmitter or transceiver should be inspected and aligned according to the manufacturer’s service procedures. Neutralization, bias current, and idle current settings should be verified to prevent parasitic oscillations and to ensure proper efficiency, stability, and maximum tube life. Always refer to the service manual for your specific equipment model.
