General Electric 12BY7A NOS Vacuum Tube (USA RF Pentode)

When it comes to the driver stage in classic amateur radio transceivers, engineers and experienced technicians have long trusted General Electric (GE) vacuum tubes for their exceptional stability, reliability, and long service life. The General Electric 12BY7A NOS vacuum tube is designed to ensure that the RF signal driving the final power amplifier tubes remains clean, strong, and free from distortion, helping maintain optimum transmitter performance.

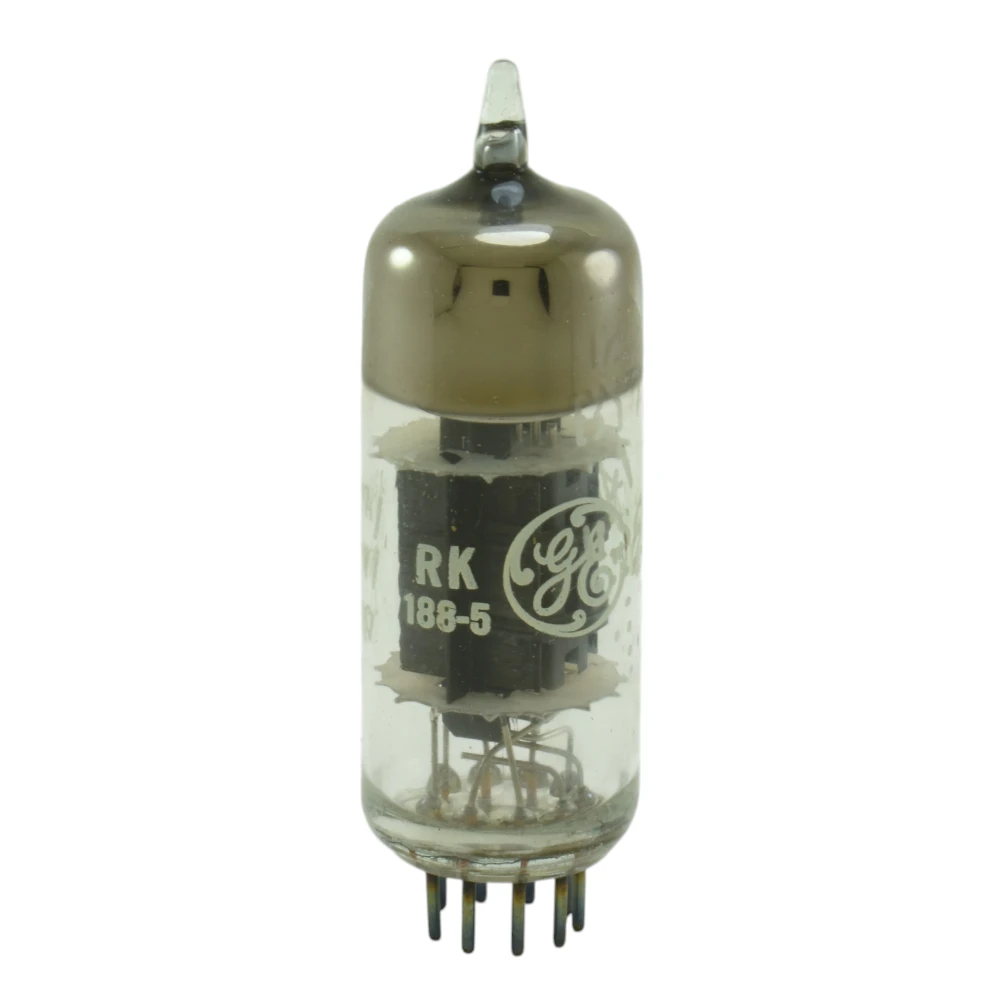

This particular unit is a genuine New Old Stock (NOS) vacuum tube. Unlike modern reproductions, it was manufactured during the golden age of American electronics. It bears the “188” factory code, identifying it as a tube produced by General Electric, a mark recognized by collectors and restoration specialists as evidence of authentic U.S. manufacture and GE’s renowned quality standards.

Multiple Designations, Same Proven Performance

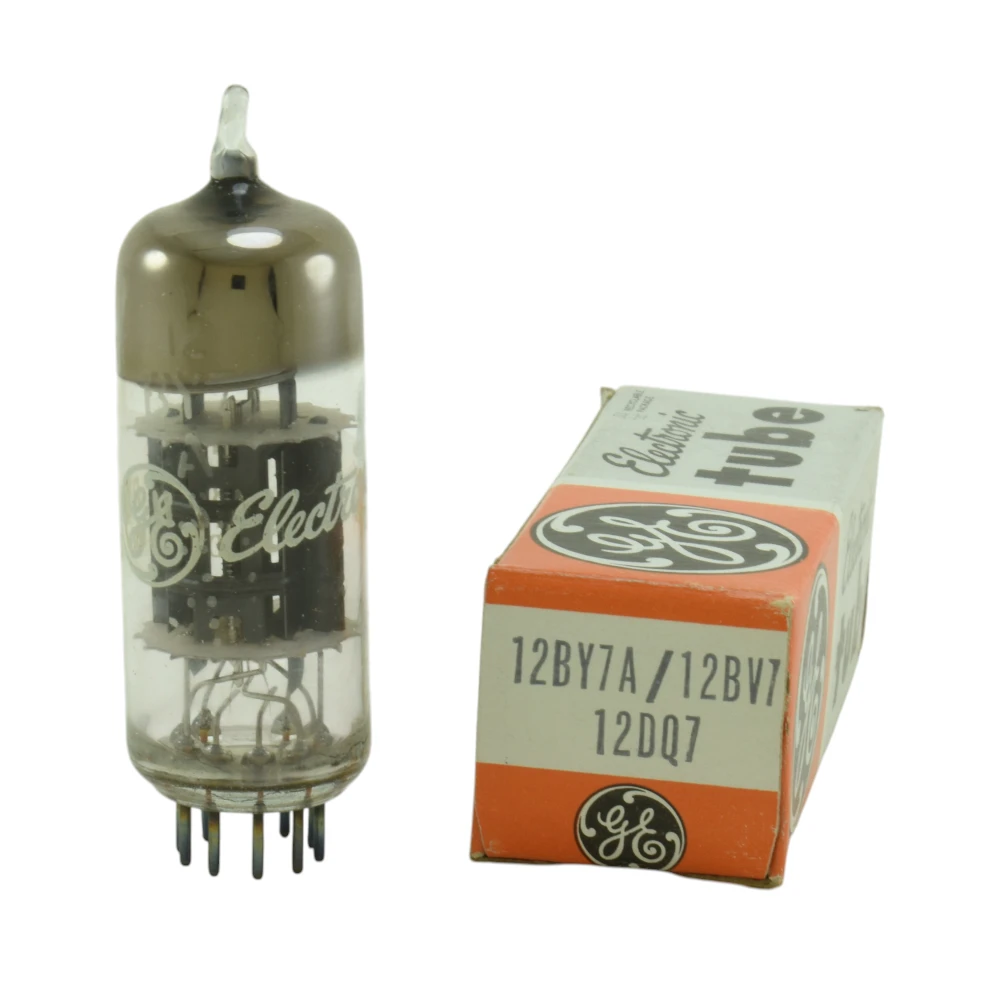

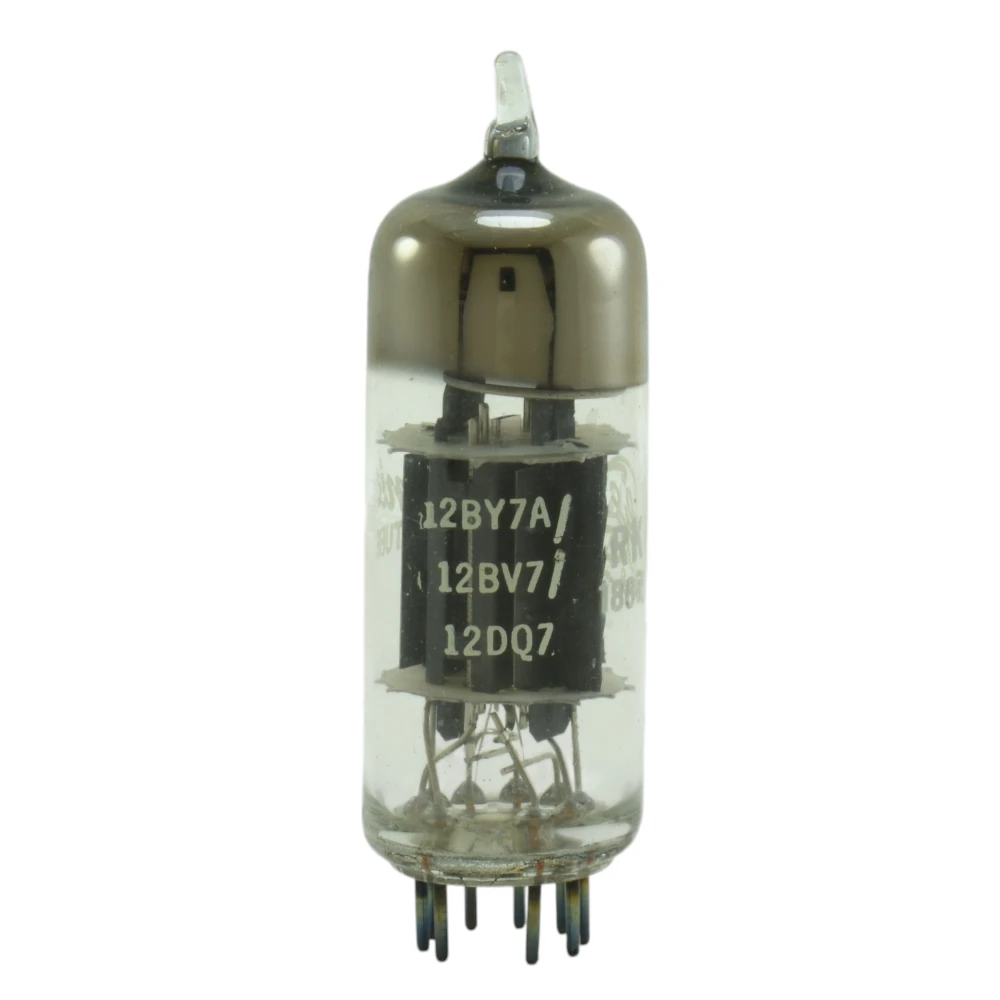

As shown on both the tube and its original box, this unit carries the 12BY7A, 12BV7, and 12DQ7 designations. General Electric qualified this tube to meet the specifications associated with all three type numbers, allowing it to serve as a versatile replacement where these designations are specified. This multi-designation marking reflects GE’s manufacturing and labeling practices for compatible tube variants, making it a practical choice for restoration, servicing, and replacement applications.

Compatibility with Classic Equipment
This tube is the preferred direct replacement and performance upgrade for the RF driver stage in some of the most iconic HF amateur radio transceivers and transmitters, including:

• Kenwood Series: Compatible with the TS-520, TS-820, TS-530S, and TS-830S. The 12BY7A serves as the RF driver tube, delivering the clean excitation signal required by the final power amplifier stage for reliable transmitter performance.

• Yaesu Series: Compatible with the FT-101 series, FT-901, and FT-902 transceivers. In these classic designs, the 12BY7A functions as the RF driver tube, supplying the stable drive signal required for efficient operation of the final amplifier stage.

• Línea Drake: Línea T-4X, TR-3, TR-4.

(Datasheet Reference)

• Type: Sharp-Cutoff Pentode for broadband and RF amplification.

• Base Type: B9A Noval (9-Pin Miniature).

• Heater Voltage: 12.6 V.

• Heater Current: 0.3 A.

• Maximum Plate Dissipation: 6.5 Watts.

• Typical Transconductance: 12,000 µmhos.

FAQ

1. Why is the tube marked 12BY7A, 12BV7, and 12DQ7 at the same time?
General Electric manufactured this tube to exceptionally high standards, allowing it to meet or exceed the electrical specifications of all three type designations, which are electrically very similar. It can be used with confidence in any equipment whose service manual specifies 12BY7A, 12BV7, or 12DQ7, making it a reliable and versatile replacement for any of these tube types.

2. Is General Electric a good brand for this specific tube?
Yes. General Electric (GE) is widely regarded as one of the premier American manufacturers of vacuum tubes. U.S.-made GE 12BY7A tubes, identifiable by the 188 factory code, have earned an excellent reputation among amateur radio operators and restoration specialists for their outstanding reliability, low noise characteristics, and long service life. These qualities make them a preferred choice for RF driver applications in classic transceivers and transmitters.

3. What symptoms indicate that this tube needs to be replaced?
The most common symptom of a worn or weak 12BY7A is the inability of the transmitter to reach its rated RF output power—for example, producing only 50 watts when it should deliver 100 watts. Another common indication is difficulty or inability to properly adjust the Drive or Preselector controls during the transmitter tune-up procedure, often accompanied by very low or no ALC (Automatic Level Control) indication. These symptoms typically point to insufficient RF drive reaching the final amplifier stage.
